HMO Floor Plan
Compliance-ready HMO floor plans for licensing submissions, council inspections, and property marketing — clearly mapping room divisions, shared facilities, fire safety, and occupancy.
HMO Floor Plan
Our HMO Floor Plans are purpose-designed to meet the specific layout and documentation requirements of Houses in Multiple Occupation licensing in England and Wales. We clearly map private room divisions, shared kitchens and bathrooms, fire escape routes, safety provisions, and occupancy details in a clean, easy-to-read format that satisfies licensing officers, environmental health teams, and letting agents alike. Whether you need a plan for a mandatory HMO licence application, an additional licence, or simply want a compliant, clearly presented layout for marketing purposes — our plans are produced to a professional standard with fast turnaround and up to 2 revisions included. Submission-ready and marketing-ready files are both provided.
What's Included
Full HMO Layout Plan
All rooms, shared areas, and access routes accurately drawn.
Room Division Mapping
Private and shared spaces clearly distinguished and labelled.
Fire Safety Provisions Noted
Escape routes and safety features marked where applicable.
Occupancy Information
Bedroom count and occupancy details clearly presented.
Up to 2 Revisions
Adjustments made to meet licensing officer requirements.
PDF & Image Delivery
Submission-ready and marketing-ready files both provided.

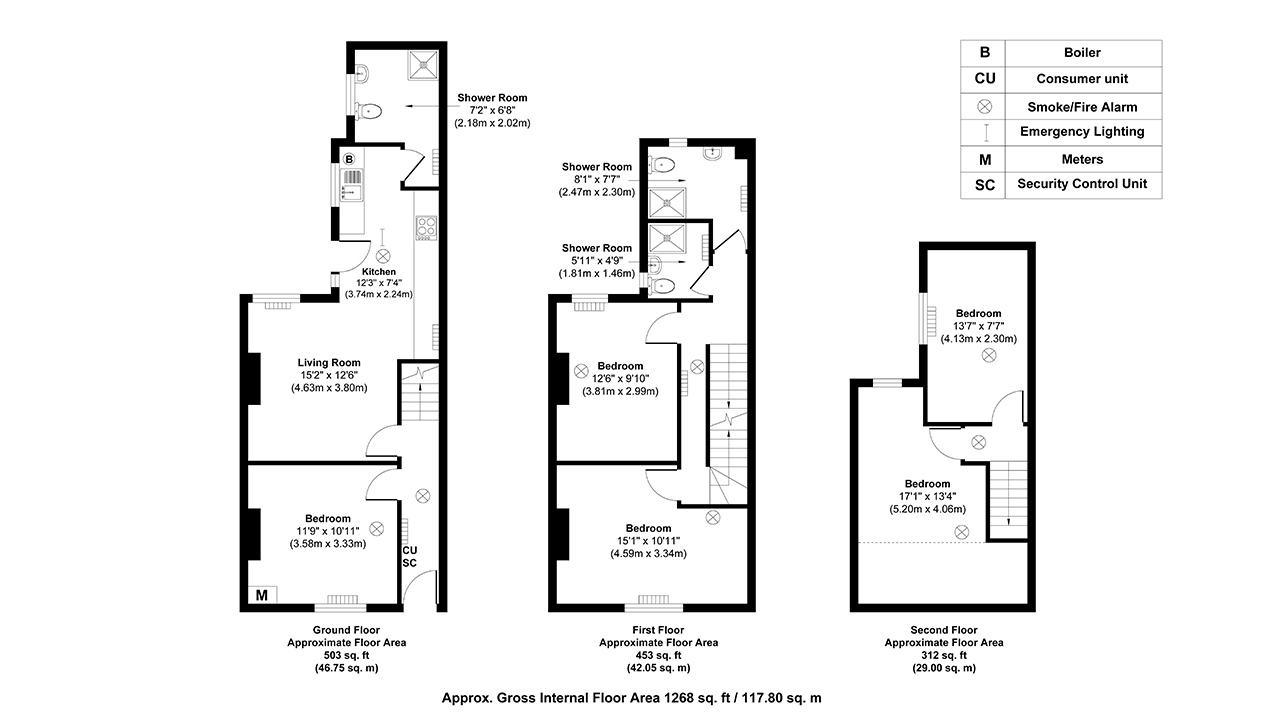

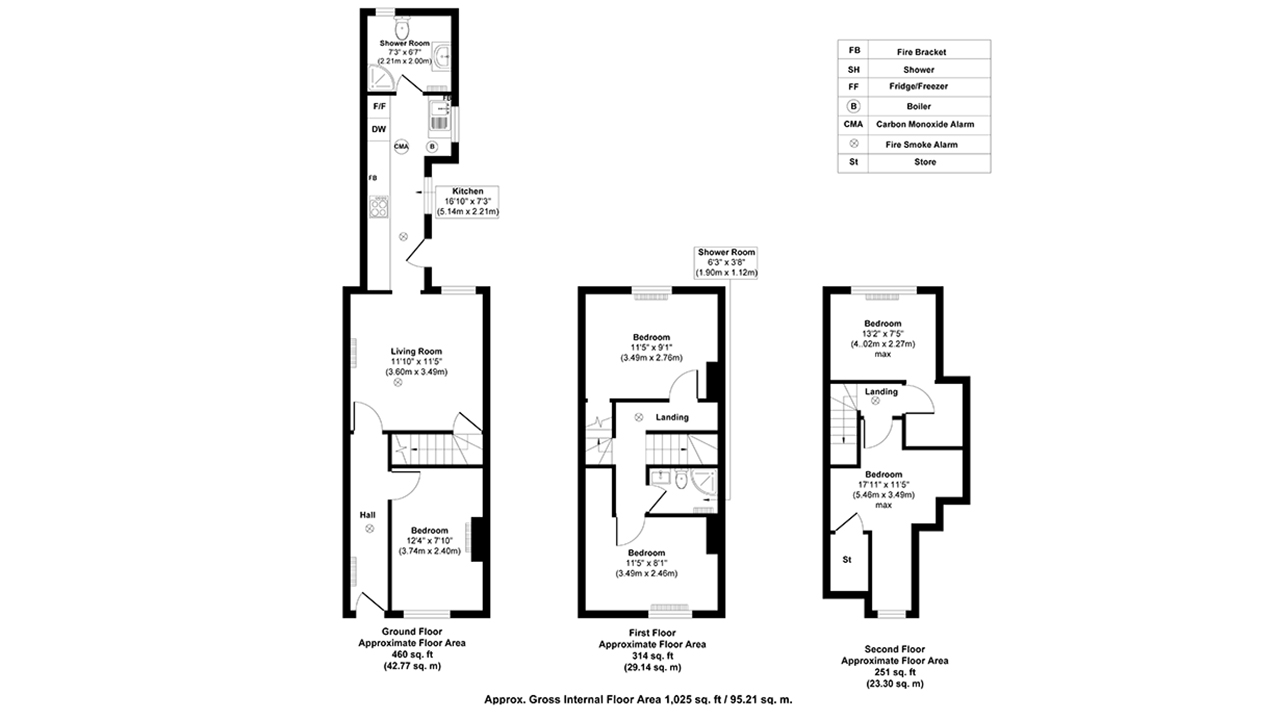

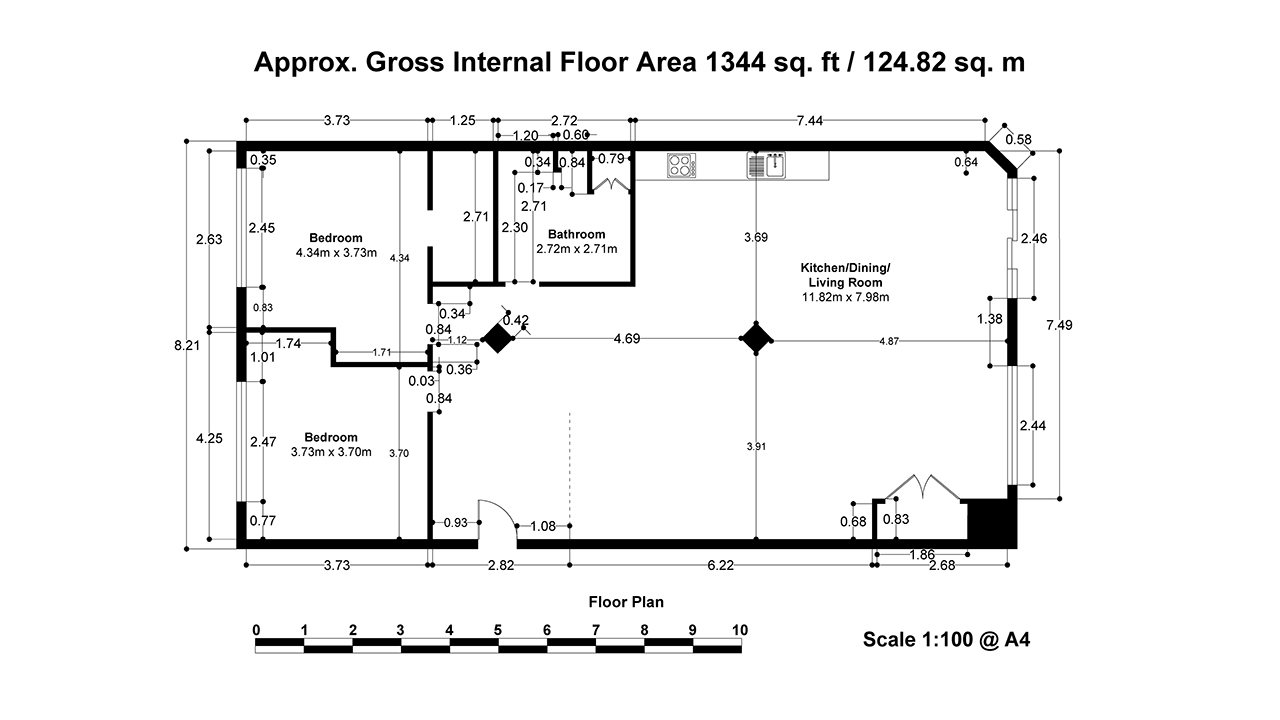

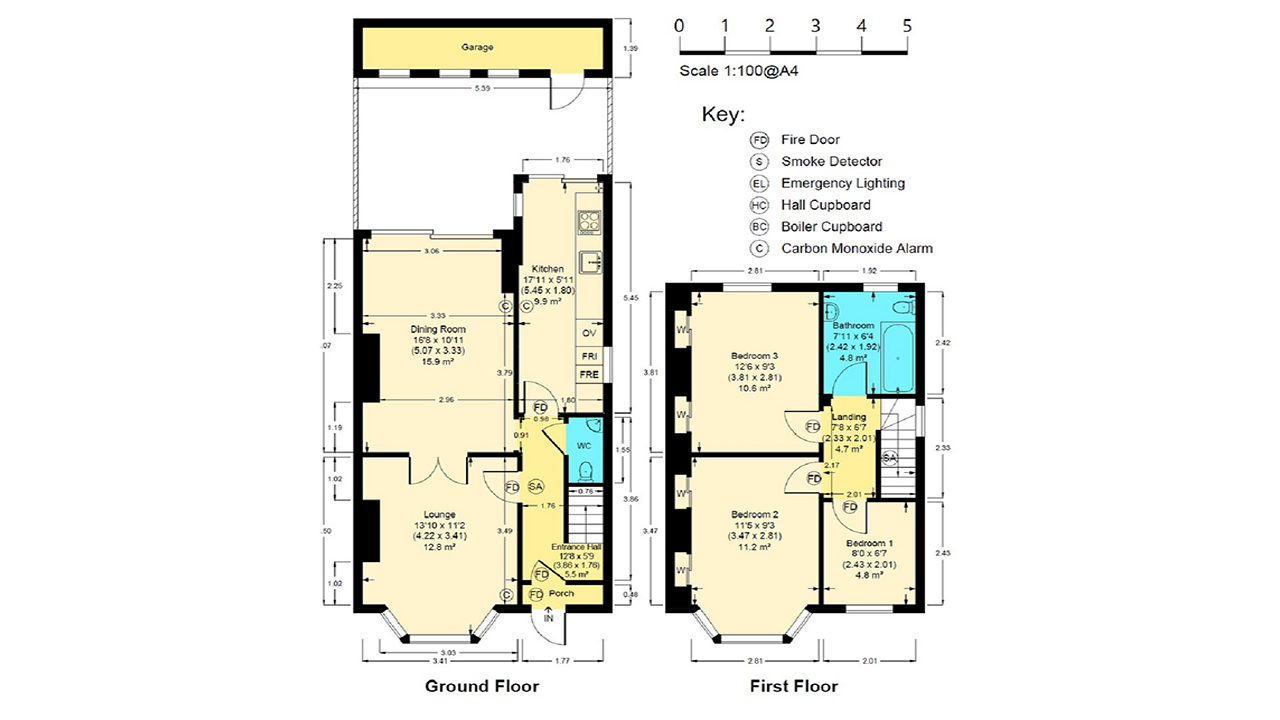

HMO Floor Plan
Sample outputs from our professional team.
Ready to Get Started with HMO Floor Plan?
Join hundreds of real estate professionals who trust VizCraft for their visual production. Contact us today for a custom quote.
Get a Quote
