Floor Plan with Site Plan
Combined interior floor plan and external site plan showing boundaries, outdoor areas, orientation, and access points — essential for new developments and multi-unit properties.
Floor Plan with Site Plan
Our Floor Plan with Site Plan service provides buyers, agents, and property professionals with a complete picture of any property — both inside and out. We produce accurate interior floor plans alongside a clean, detailed site plan that maps property boundaries, outdoor areas, access routes, north orientation, and surrounding features. This combined output is essential for new residential developments, multi-unit listings, agricultural properties, and any sale where context, setting, and external space are critical to buyer decision-making. Delivered together as a single cohesive property document in high-resolution PDF and image formats, with up to 2 revisions and a fast turnaround.
What's Included
Full Interior Floor Plan
Accurate dimensioned layout of all internal rooms and spaces.
External Site Plan
Boundary lines, outdoor areas, access points, and orientation mapped.
North Point & Orientation
Property orientation clearly indicated on the site plan.
Labels & Annotations
All interior rooms and exterior zones clearly identified.
Up to 2 Revisions
Both plans adjusted until they fully meet your requirements.
PDF & Image Delivery
High-resolution files for print and digital use delivered together.
Floor Plan with Site Plan

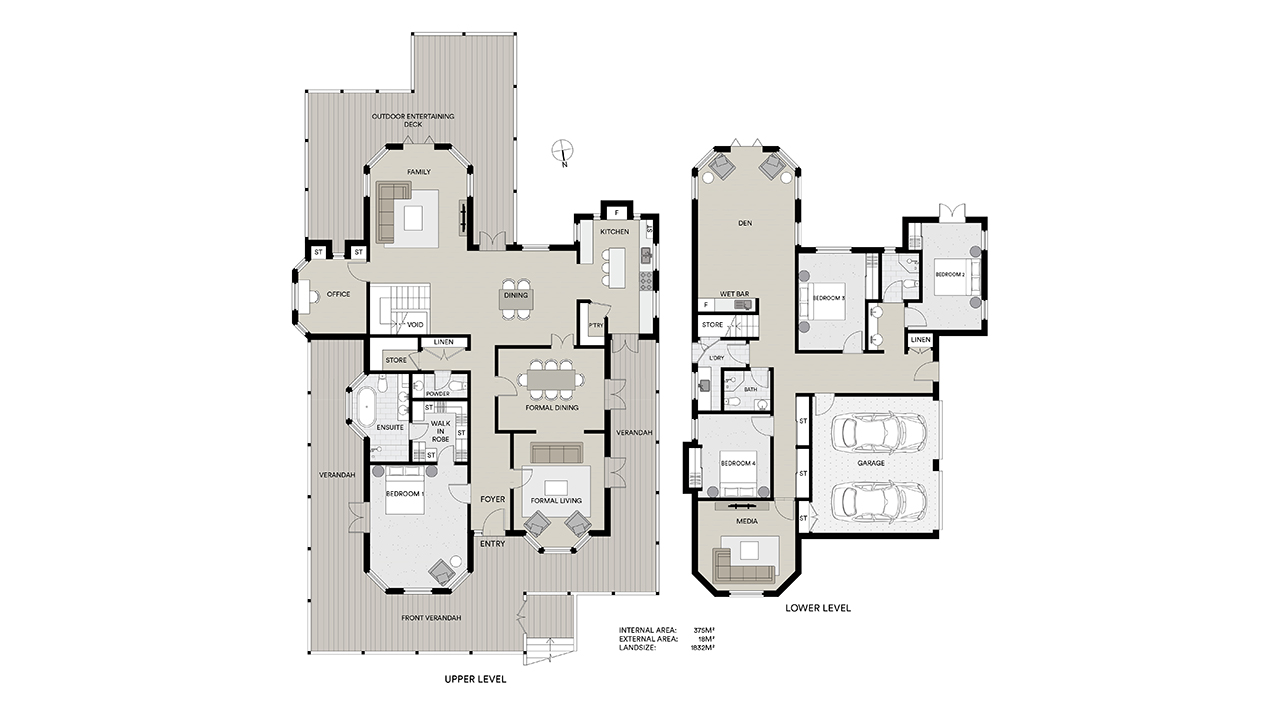

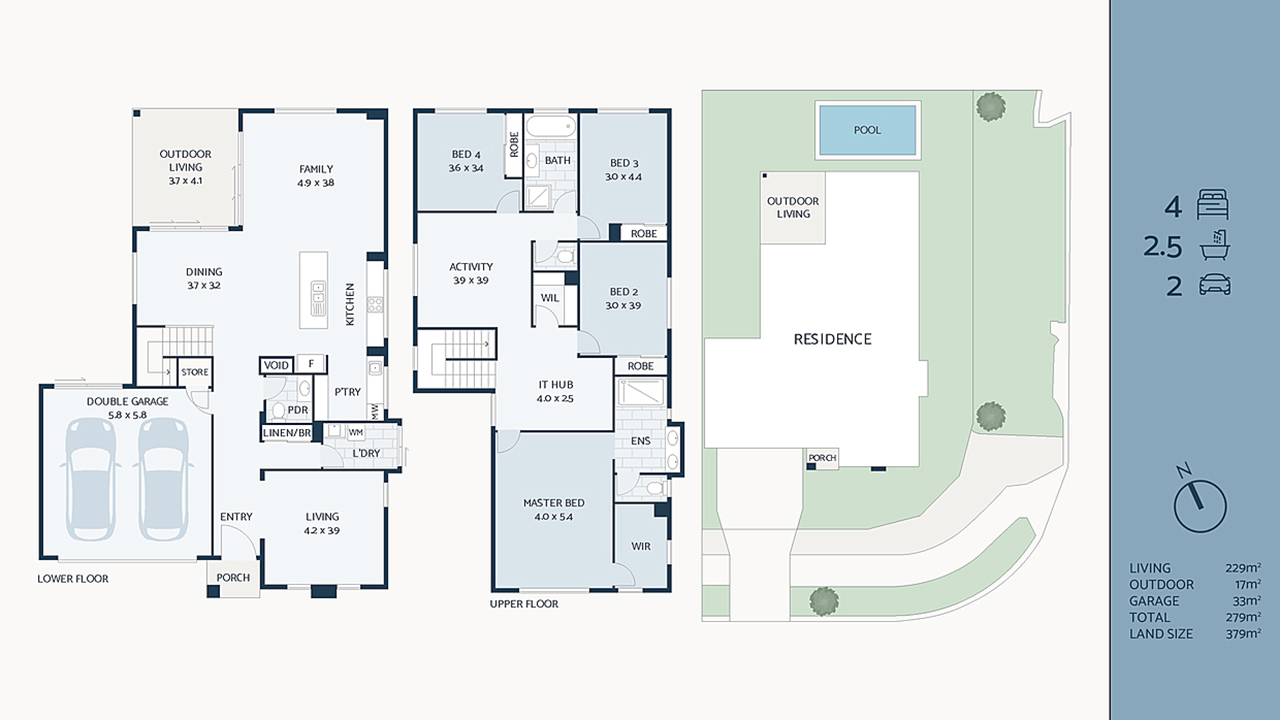

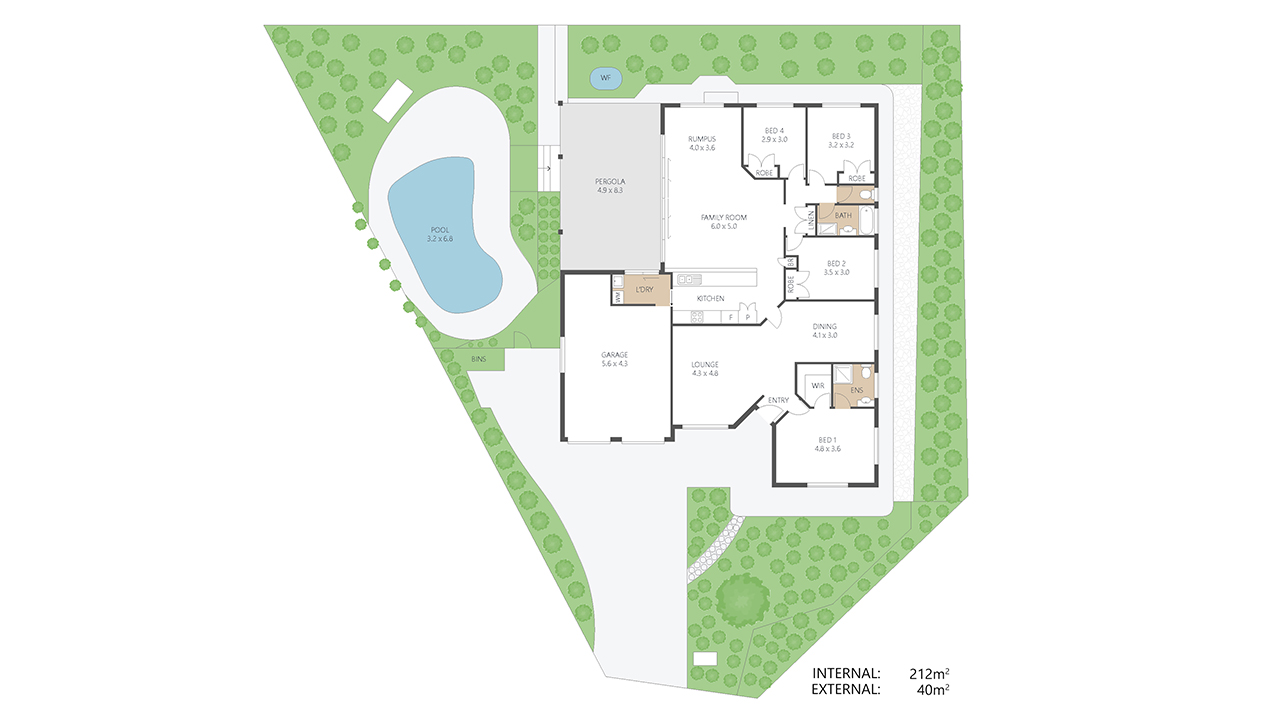

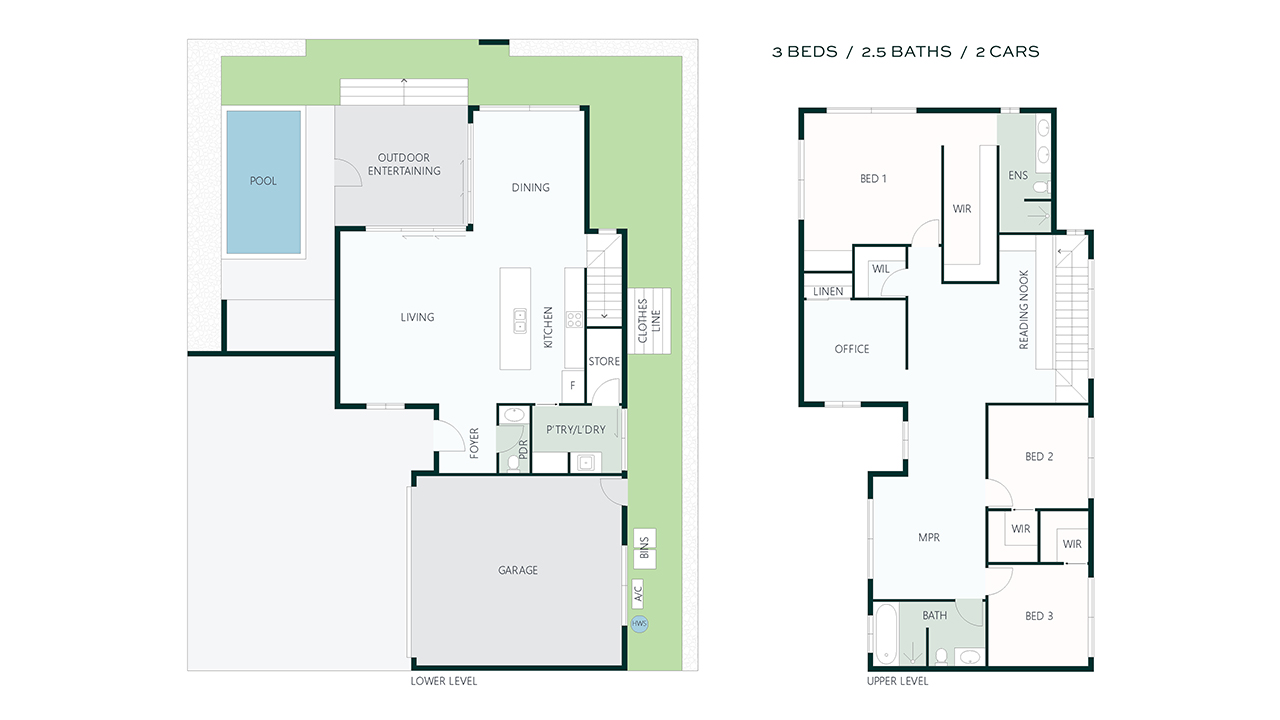

Sample outputs from our professional team.
Ready to Get Started with Floor Plan with Site Plan?
Join hundreds of real estate professionals who trust VizCraft for their visual production. Contact us today for a custom quote.
Get a Quote
